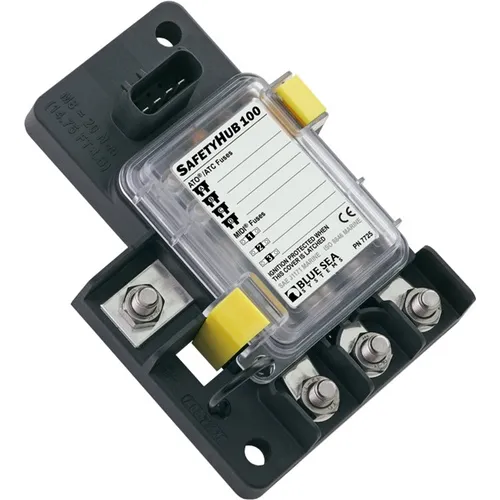

The SafetyHub 100 combines an ignition protected fuse block and an integrated connecting plug. It is safe for use on gasoline powered boats, reduces wiring connections, and consolidates up to seven fused circuits.

Three 30A−200A MIDI®/AMI® fuses [sold separately] ideal for high-amp circuits including panel feeds, windlasses, and stereo amplifiers

Four 1A−20A ATO®/ATC® fuses [sold separately] ideal for circuits including bilge pumps, alarms, and clock memory

Sealed cover protects fuses from the harsh marine environment: IP66 rating-protected against powerful water jets

Integrated connector plugs eliminate loose wires and provide a secure, waterproof connection

Ignition protected fusing meets Coast Guard and ABYC requirements for installation on gasoline or diesel powered boats

Connector Plug to Suit part no. 7731 NOT INCLUDED purchased seperately

Specifications:

Circuits: 7
Stud Size: M8 x 1.25
Operating Voltage: 12V 24V 32V
Amperage Maximum Operating - combined: 280A
Recommended Ring Terminal: M8 (5/16")
Screw Torque, 8-32: 18in-lb (2.03 Nm)
Screw Torque, M5: 27in-lb (3.05 Nm)
Stud Torque: 180 in-lb (20.34 Nm)
Weight: 3.20lb (1.45 kg)
